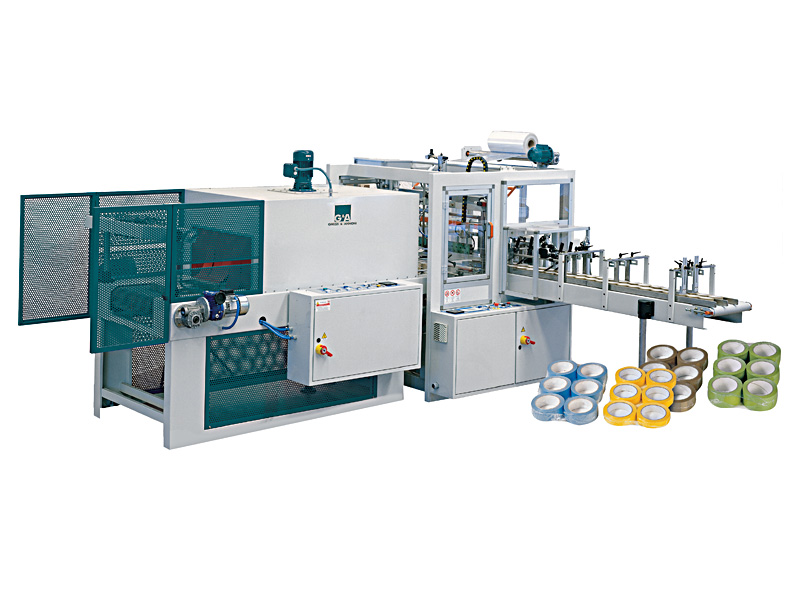

SP24

SHRINK-WRAPPING MACHINE

Strong and compact machine packs rolls with different heights from 18 to over 200 mm. and diameter up to 450 mm. It uses PE film.

Categoria: .
SP24_DEFI

Descrizione prodotto

MAIN FEATURES

  • Types of packs: flat or big diameter rolls.
  • Shrinking material: PE from 20 to 40 micron.
  • Max. Width jumbo-roll: 600 mm.
  • Max. Diameter of jumbo-roll: 400 mm. approx.
  • Heights of rolls to be packed: from 18 to over 200 mm.
  • Shrinking oven with settable temperature
  • Driven conveyor belts for rolls.
  • Types of packs:
    – 3 rows of 4 rolls with diameter of 110 mm. approx.
    – 2 rows of 3 rotoli with diameter from 110 to 140 mm. approx.
    – 2 rows of 2 rolls with diameter from 120 to 180 mm. approx.
    – Individual roll with max. diameter of 450 mm. approx.

OUTPUT

  • From 18 to 24 shots per minute, according to the height of the rolls.


OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER



Informazioni aggiuntive

TIPO DI CONFEZIONAMENTO ROTOLI

Piana

TIPOLOGIA

Confezionatrici in termoretraibile

ROTOLI DA CONFEZIONARE

Nastri auto-adesivi con diametro interno 3″
