Descrizione prodotto

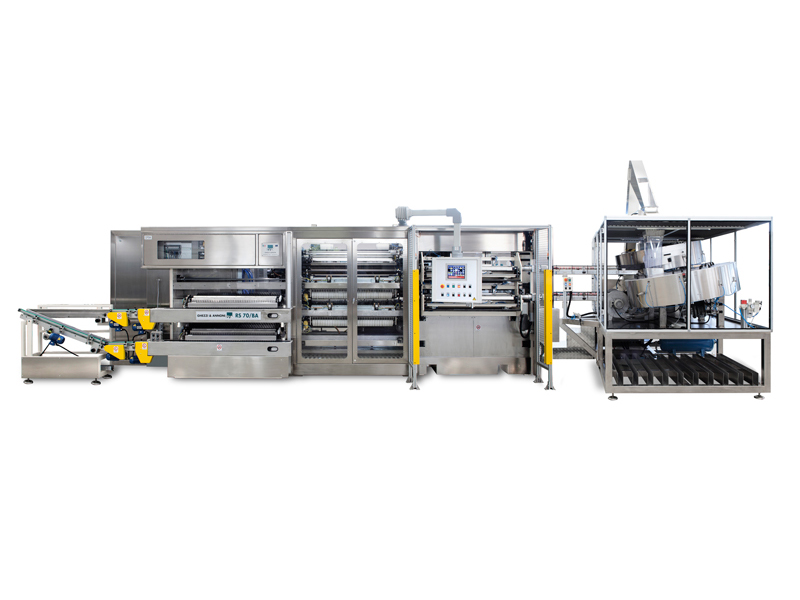

Recommended to companies with high production volumes of medical tapes on PLASTIC SPOOLS.
It is able to make from 3 to 4 cycles per minute without any manual intervention.
MAIN FEATURES
- Working width: up to 1650 mm.
- Jumbo-rolls driven unwinding
- Rollers of Slitter-Rewinder and Unwinder, anti adhesives, treated with Plasma Coating.
- Finished rolls widths: from 1 to 10 cm.
- Finished rolls max. diameter: 55 mm.

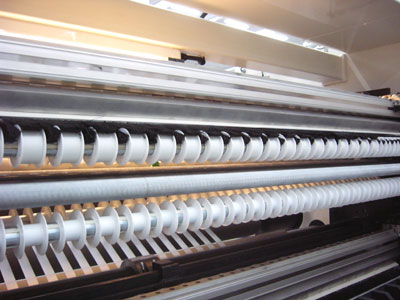

- Slitting systems: score-knives, standard or zig-zag type
- Plastic spools inside diameter: 25 mm.
- Time needed for size changeover: 30 min. approx.
PRODUCTION
- Cycle time for 5 m. rolls: form 15 to 18 sec. according to the spools width
FITTINGS:

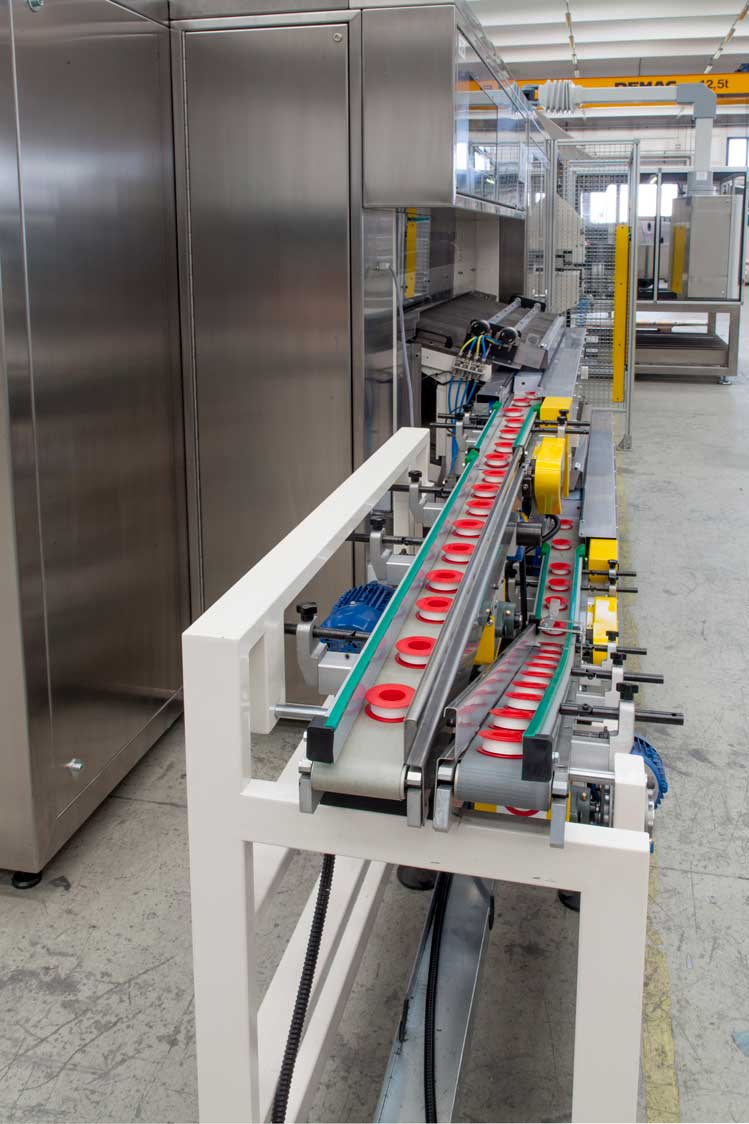

- Rolls conveyance automatic system to packaging lines
- Liner recovery station
- Splicing table positioned on the Unwinder
- Jumbo-rolls automatic edge guide
- Stainless steel covering
OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER
