Descrizione prodotto

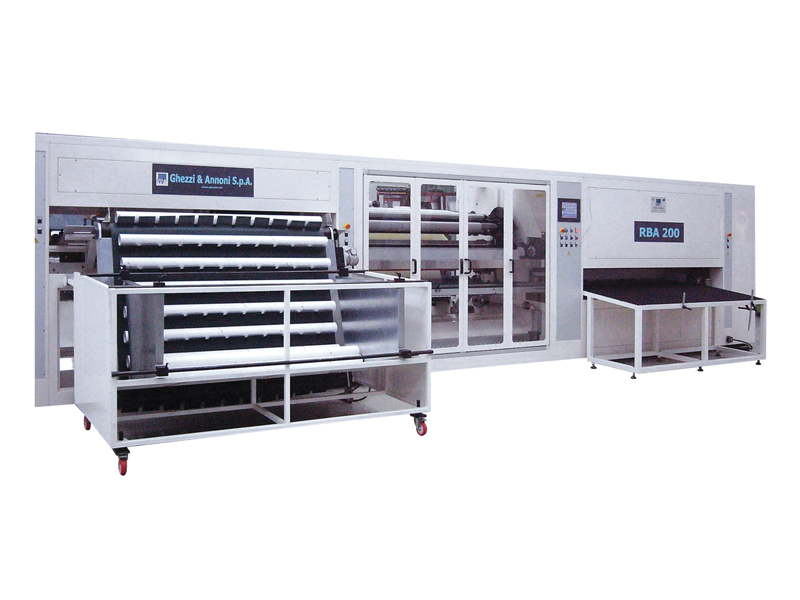

RBA200 is available in a special version with a transversal NO-STOP SLITTING SYSTEM – to reduce cycle times and limit web breaks.
MAIN FEATURES:
- Working width: up to 2000 mm.
- Finished logs min. width: 400 mm.
- Finished logs max. diameter: 200 mm.
- Rewinding: in contact, minimum gap or lay-on mode
- Finished logs inside diameter: 3” (1″ – 1 ½” – 2″ upon request)
- Mechanical speed: 450 m./min.
- Automatic loading of the cardboard tubes
- Automatic unloading of the finished logs
INDICATIVE PRODUCTION
- 50 M. MASKING TAPE LOGS = 15 SEC. APPROX.
FITTINGS:
- Longitudinal slitting and trims rewinding systems
- Splicing table
- End-tab application group on the finished logs.
- Finished logs conveyance system to the Lathe cutters
OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER
