Descrizione prodotto

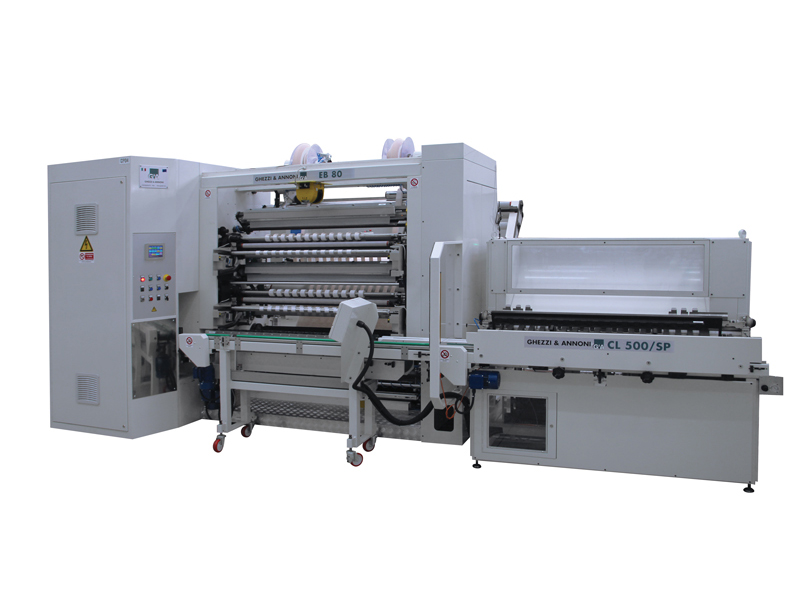

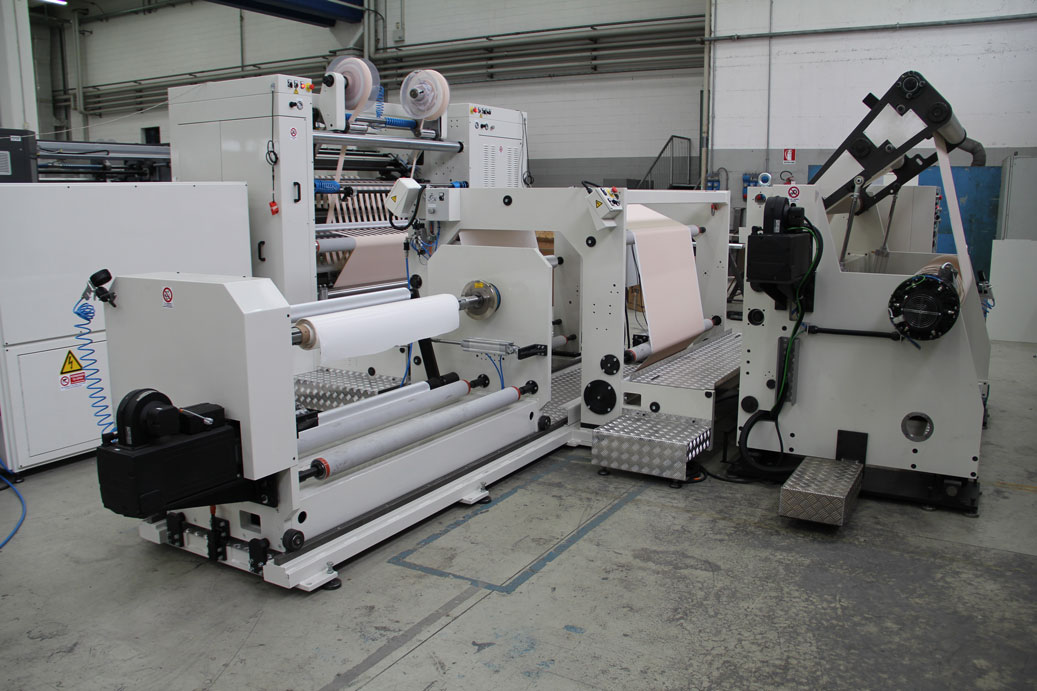

An innovative material conveyance system, from the jumbo-roll to the rewinding point and a sophisticated tensions control system guarantee a rolls production with always perfect tensions and a proper unwinding.

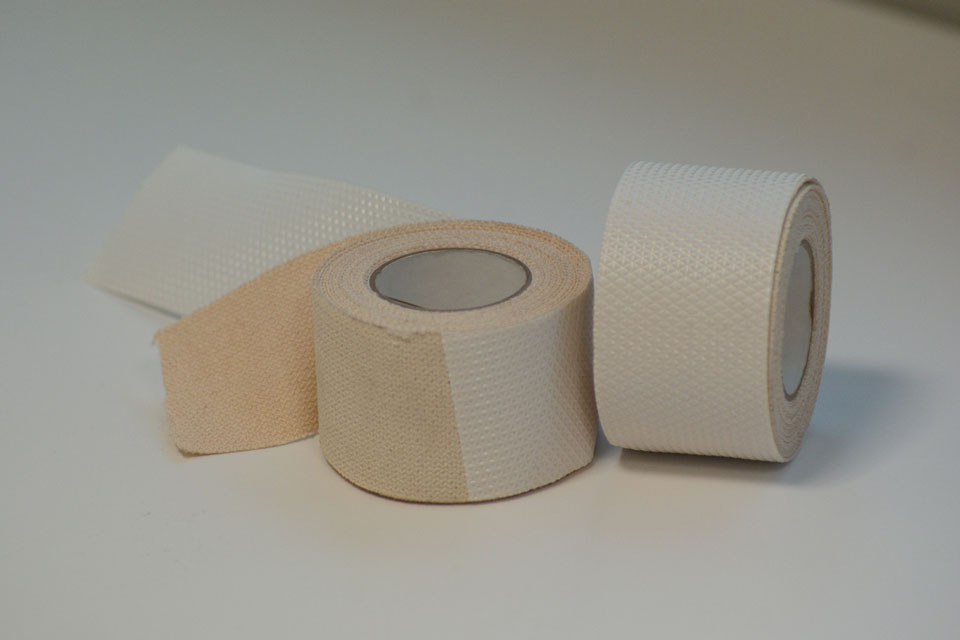

With proper fittings the EB80 can produce also medical tapes and rigid bandages on cardboard and plastic cores.
MAIN FEATURES
- Working width: up to 1650 mm.
- Finished rolls widths: from 12.5 mm. up to over 100 mm.
- Finished rolls max. diameter: 80 mm.
- Core inside diameters: 23 mm. – 1″ – 1 ½ “
- Core type: cardboard and plastic
- Liner recovery station
- Slitting system: by score-knives (straight or zig-zag)
- Time needed for size changeover: 15 min. approx.
PRODUCTION
- Cycle time for 2,5 m. rolls: from 30 to 40 sec. approx. (according to the type of material).
FITTINGS:
- Automatic system for rolls covering with embossed paper
- Rolls conveyance system to packaging lines
- Manufacturing according to CE and FDA regulations.
OTHERS FITTINGS AND DEVICES ACCORDING TO THE MATERIALS
AND THE NEEDS OF THE CUSTOMER
